Sylmasta use CrackSeal Pipe Sealant and SylWrap HD Pipe Repair Bandage to make a live leak repair to a cracked cast iron pipe, which is then successfully tested to withstand up to 10 bar pressure.
About this Pipe Repair Video
This demonstration video was filmed at Sylmasta HQ to test the live leak repair capability and pressure resistance of CrackSeal Pipe Sealant when used to seal a crack in a cast iron pipe.
CrackSeal is a moisture curing pipe sealant used to quickly and easily repair cracks and splits in cast iron waste, drain and soil pipes. It is also effective on other pipe materials, including steel and concrete-lined pipework.

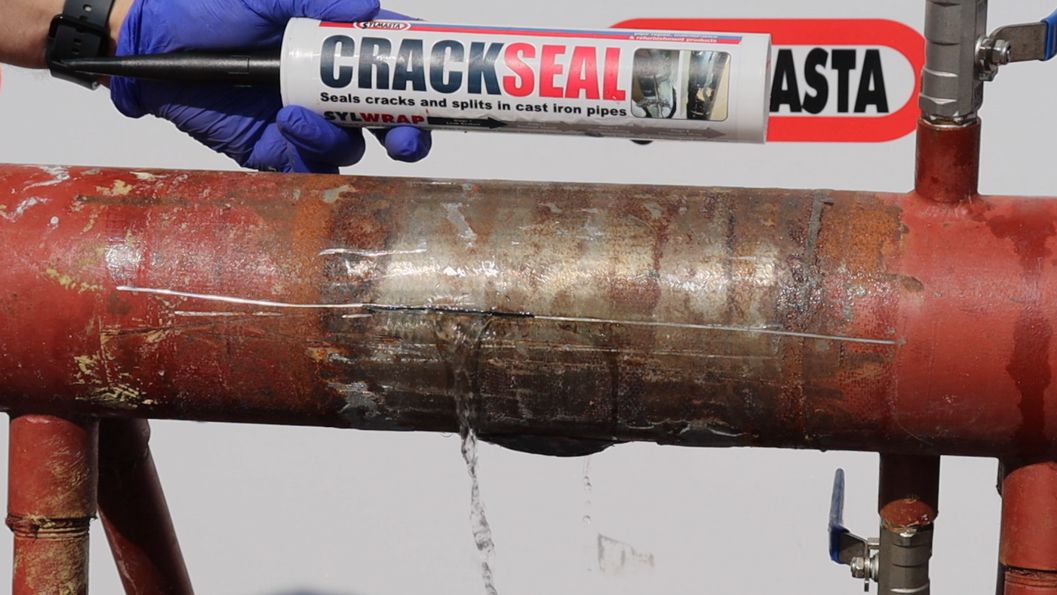

We cut a horizontal split into a test rig and set pressure so that a steady stream of water was leaking through. CrackSeal was then used to repair the damage.
Using a standard sealant gun, we extruded CrackSeal into the crack until it was totally filled. The sealant began to harden almost instantly. It easily contained the live leak and prevented any more water leaking through.
CrackSeal forms a skin in 10 minutes. Before this happened, we worked quickly to smooth it off with a plastic spatula. This helped increase the surface area of the repair and the adhesion between the sealant and the pipe.
After CrackSeal had been applied, the pipe was left for 24 hours. This allowed the sealant to reach maximum properties. We then tested the repair.
Pressure through the rig was steadily increased to 10 bar. No water leaked through and there was no deformation of CrackSeal, indicating a successful repair.
For added reinforcement, we applied a SylWrap HD Pipe Repair Bandage across the entire repair area. SylWrap HD is composite repair wrap with a water activated resin.
It was wrapped and smoothed around the cast iron pipe, curing within minutes to form a rock hard impact resistant sleeve encompassing the leak area.
This made for a stronger repair and a permanent solution with even greater pressure resistance beyond the 10 bar CrackSeal alone had withstood.
CrackSeal and SylWrap HD can be purchased together for making permanent live leak repairs as part of the SylWrap Cast Iron Pipe Repair Kit.
The Kit also includes Superfast Steel Epoxy Putty. Superfast Steel is a fast-working epoxy putty mixed by hand and forced into holes too large to be filled with CrackSeal. It cures to a waterproof, steel-like material in 10 minutes.
Cast Iron Pipe Repair Products
CrackSeal Pipe Sealant
Moisture curing pipe sealant extruded into cracks in cast iron pipework, where it sets almost instantly

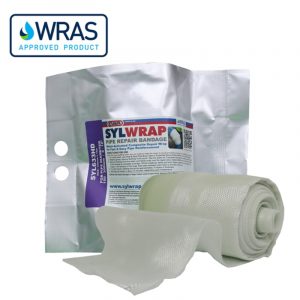

SylWrap HD Pipe Repair Bandage
Composite wrap with a water activated resin with sets to create a rock hard, impact resistant sleeve over pipework
SylWrap Cast Iron Pipe Repair Kit
Contains CrackSeal, Superfast Steel Epoxy Putty and SylWrap HD for fast, permanent cast iron pipe repair
